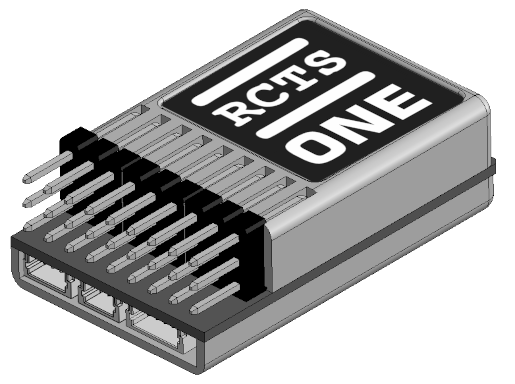

Multifunctional Unit for R/C models
- Sound , Servo & Lights control
- Online Config Tool
- Custom Sound Libraries
- Android / iOS control app
For configuring RCTS-ONE you can use any device with Bluetooth adapter onboard
(Read the User Manual for details)
Features
ESC Signal Adjustment
Define acceleration speed, coast and brakes intensity.
Steering Adjustment
Setting the steering servo's rotation speed
Universal output ports
Each port can operate either as a LED or a servo output
Stackable Led Modules
You can assemble garlands from LED modules (Up to 8 units with 3 controllable led outputs for eachh)
Size of Module
38 mm / 23mm / 12 mm
Port expansion module
You can connect up to 16 additional servos
Sound Creator
Create and test your own sound library using the RCTS Sound Creator Tool
Robust Audio Processing System
A Wav player for 60 soundtracks, offering customizable parameters like playback speed, pitch, and volume, among others
Servo with Sound combination
Configure the playing of the soundtrack while the servo is operating
Hydraulics made easy
Easy configuring mixing outputs for oil ESCs and distribution servos (with sounds support)
Up to 3 function to single channel
Combine control for several servos or commands (up to 3) into a single RX channel using a function switcher
Android / iOS Control App
Remote control using Bluetooth with a special app for smartphones (RCTS Control)

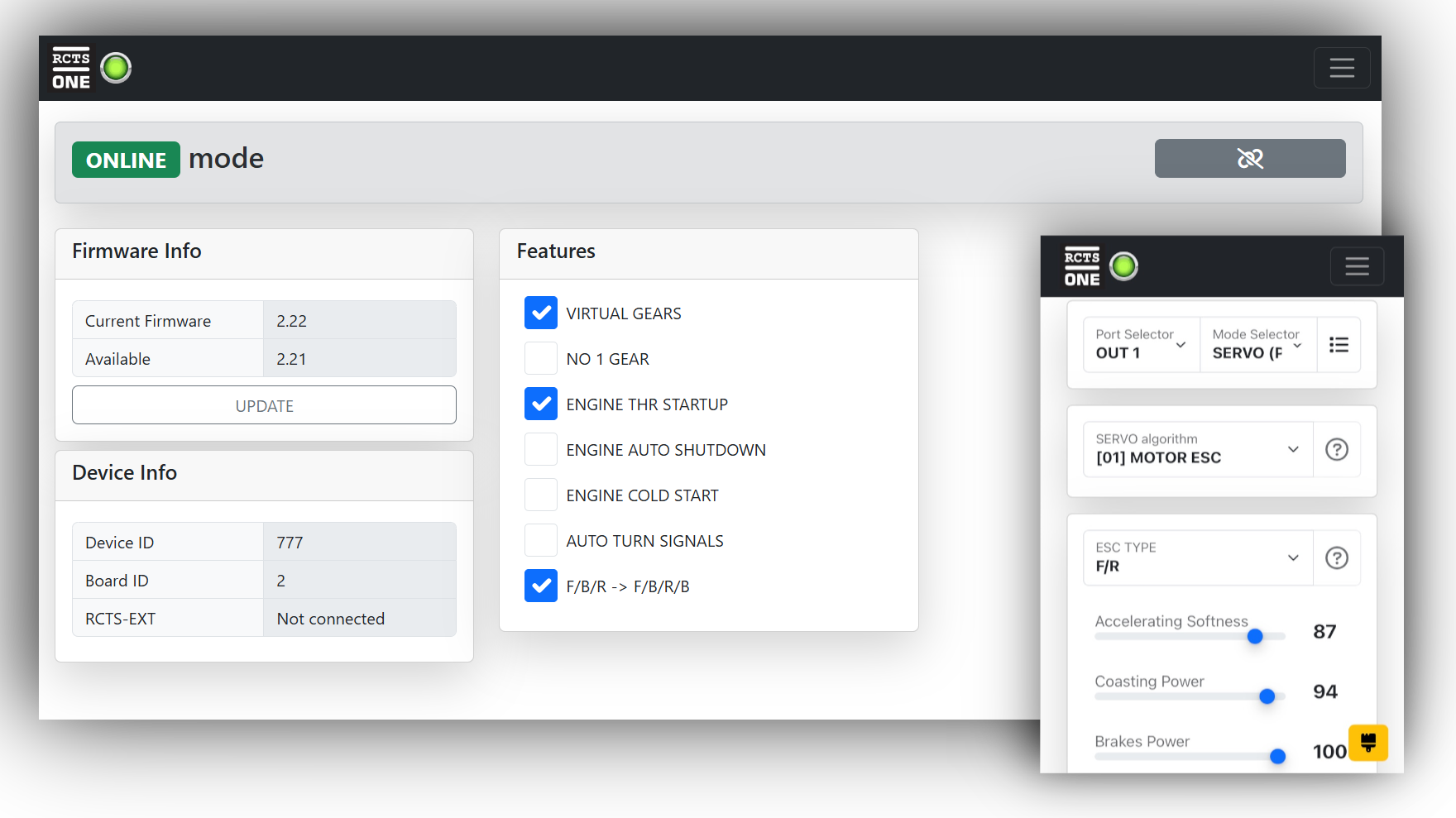

Easy Customization
With the online configuring tool, it's easy to customize the module configuration
Firmware updates
Frequently module upgrades
Servo Algorithms
Many useful algorithms for servos (25+)
RC commands
Available more than 55 remote control commands
IR connectivity with the trailer
Transmission of information on all light profiles and 4 servo devices
F/B/R/B ESC option
Adding braking state after reversing in the F/B/R mode of the ESC
Turn signals control
Various methods of controlling turn signals
Virtual Gear Control
Switching virtual gears that set the direction of movement (forward/neutral/reverse)
